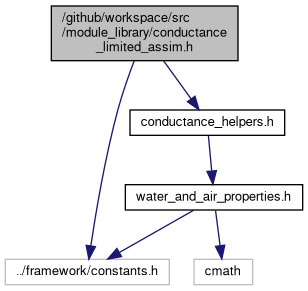

Include dependency graph for conductance_limited_assim.h:

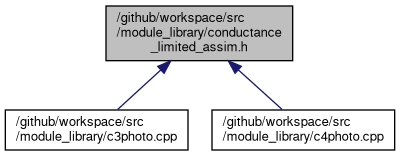

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Functions | |
| double | conductance_limited_assim (double Ca, double gbw, double gsw) |
| Computes the conductance-limited net CO2 assimilation rate. More... | |
Function Documentation
◆ conductance_limited_assim()
|
inline |
Computes the conductance-limited net CO2 assimilation rate.
The flow of CO2 from the atmosphere to the intercellular air spaces is modeled using a simple one-dimensional flux equation:
\[ A_n = g_{tc} \cdot \left( C_a - C_i \right), \qquad \text{(1)} \]
where \( A_n \) is the net CO2 assimilation rate, \( g_{tc} \) is the total conductance to CO2 diffusion across the boundary layer and through the stomata, \( C_a \) is the atmospheric CO2 concentration, and \( C_i \) is the CO2 concentration in the intercellular air spaces. Here, \( C_i \) cannot be negative, since it is not possible to have a negative number of CO2 molecules in a gas mixture; this places a restriction on the maximum value that \( A_n \) can take, since very large values would require \( C_i < 0 \) in Equation (1).
To derive this restriction, we first solve Equation (1) for \( Ci \):
\[ C_i = C_a - A_n / g_{tc}. \qquad \text{(2)} \]
Now, if \( C_i = 0 \) when \( A_n = A_n^{max} \), where \( A_n^{max} \) is the maximum assimilation rate limited by CO2 conductance, we can use Equation (2) to solve for \( A_n^{max} \):
\[ A_n^{max} = C_a \cdot g_{tc}. \qquad \text{(3)} \]
Finally, we note that the total conductance to CO2 diffusion can be calculated from the boundary layer conductance to H2O diffusion ( \( g_{bw} \)) and the stomatal conductance to H2O diffusion ( \( g_{sw} \)) according to
\[ \frac{1}{g_{tc}} = \frac{DR_b}{g_{bw}} + \frac{DR_s}{g_{sw}}, \qquad \text{(4)} \]
where \( DR_b \) is the ratio of diffusivities of H20 and CO2 in the boundary layer and \( DR_s \) is the same ratio in the stomata. Combining Equations (3) and (4), we have:
\[ A_n^{max} = \frac{C_a}{\frac{DR_b}{g_{bw}} + \frac{DR_s}{g_{sw}}}. \qquad \text{(5)} \]
This function implements Equation (5).
- Parameters
-
[in] Ca The atmospheric CO2 concentration expressed as a mole fraction with units of micromol / mol. [in] gbw The conductance to H2O diffusion in the boundary layer with units of mol / m^2 / s. For an isolated leaf, this should be the leaf boundary layer conductance; for a leaf within a canopy, this should be the total conductance including the leaf and canopy boundary layer conductances. [in] gsw The conductance to H2O diffusion in the stomata with units of mol / m^2 / s.
- Returns
- The conductance-limited net CO2 assimilation rate in units of micromol / m^2 / s.
Definition at line 70 of file conductance_limited_assim.h.
References sequential_conductance().
Referenced by c3photoC(), and c4photoC().
Here is the call graph for this function:
Here is the caller graph for this function:
